Core Specifications & Performance

• Operating System:
  Runs on Android 14, offering the latest features and security updates. This provides a stable and user – friendly platform with access to a vast library of Android applications, enabling seamless integration with different software ecosystems for enhanced productivity.
• Processor:
  Powered by the MTK MT6877 octa – core processor. With 6 Cortex – A55 cores operating at 2.0GHz and 2 Cortex – A78 cores reaching 2.4GHz, it can efficiently handle multitasking, data processing, and running resource – intensive applications.
• Graphics:
  Features the Arm Mali – G68 GPU, ensuring smooth visual performance for tasks such as video playback, graphical user interfaces, and even some light – weight gaming or augmented reality applications.
• Memory/Storage:
  • Base configuration: 8GB of RAM and 256GB of ROM.
  • Optional upgrade: 12GB of RAM with 256GB of ROM, catering to users who require more memory for multitasking and larger storage for data – intensive tasks.

Display & Interaction

• Screen:
  The 10.1 – inch TFT screen has a resolution of 1200×1920. With a typical brightness of 350nits and a maximum of 400nits, it offers clear visuals in different lighting conditions. Whether used indoors or outdoors, users can expect to view content without much difficulty.
• Touch:
  Supports 10 – point touch and stylus input, enabling precise operation. This is especially useful for tasks like data entry, navigating complex interfaces, and interacting with touch – based applications, even when wearing gloves or in less – than – ideal conditions.

Power & Mobility

• Battery:
  • Equipped with a 10000mAh (3.8Vdc, 38.0Wh) battery, providing sufficient power for extended use in the field. This allows users to work continuously for a long time without frequent charging.
  • Charges with a 5V 3A DC charger, which is a common and convenient charging solution.
• Design:
  Compact and lightweight, measuring 252.0×168.0×13.8mm and weighing 800±50g. Its portable design makes it easy to carry around during field operations, and the included accessories like a carry strap (if any) would further enhance its portability.

Connectivity & Expansion

• Wireless:
  • WWAN: Supports GSM, WCDMA, FDD – LTE, TDD – LTE, and NR networks, covering a wide range of frequency bands. This ensures reliable mobile connectivity across different regions, allowing for seamless communication and data transfer on the go.
  • WiFi: 802.11a/b/g/n/ac wireless technology with 2.4G and 5G support, enabling high – speed wireless networking.
  • Bluetooth 5.0: Allows for seamless pairing with other devices, such as headphones, speakers, or external keyboards.
  • GPS: Incorporates BDS, GPS, and GLONASS, providing accurate positioning for applications like asset tracking, navigation, and location – based services.
  • NFC: 13.56 MHz (ISO/IEC 14443 A/B, ISO/IEC 15693) enables contactless data transfer and identification, which is useful for tasks like access control and payment processing.
• Wired Interfaces:
  Features 1×Type – C port, which is versatile and can be used for charging, data transfer, and connecting to external devices.

Durability & Certification

• Rugged Build:
  • IP65 – rated for dustproof and waterproof protection, and can withstand drops of up to 1.2 meters. This makes it suitable for use in harsh industrial environments, construction sites, warehouses, and outdoor settings.
  • Operating Temperature: -20°C to 55°C; Storage Temperature: -30°C to 60°C, ensuring reliable performance across a wide range of temperatures.
• Certifications:
  While not explicitly stated in the same way as some other models, its IP65 rating and ability to meet the temperature requirements imply a certain level of quality and durability standards.

Multimedia & Customization

• Cameras:
  • Front: 5MP camera for video conferencing and self – documentation.
  • Rear: 13MP camera, suitable for barcode scanning (with optional NLS – N1 scanner), inspection, and general photography.
• Audio:
  A speaker with dimensions 40×22.59×3.1mm and an impedance of 8Ω 1W, along with a microphone (-42db, 2.2kΩ), ensures clear audio for communication and media playback.
• Optional Features:
  • 1D/2D barcode scanner (NLS – N1 optional) can be added for specialized industrial applications, such as inventory management and logistics tracking.

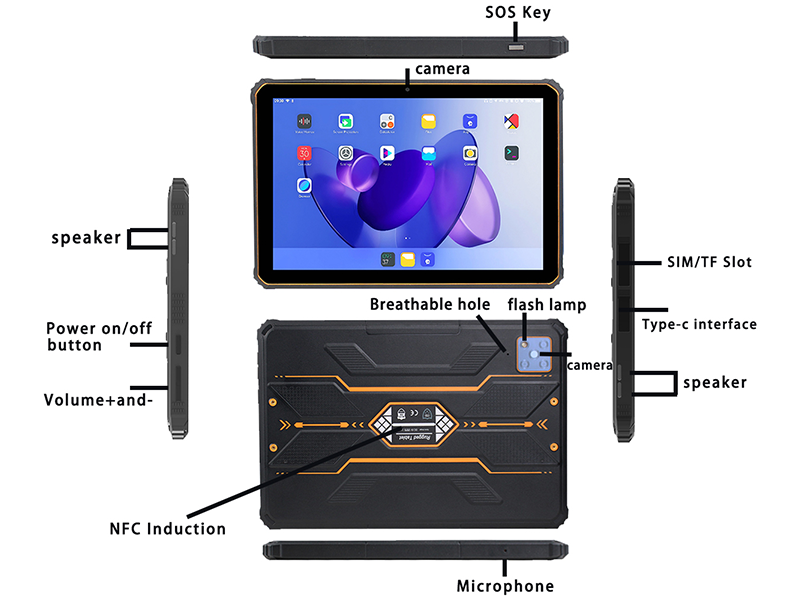

  • Buttons like Power, V + -, and “SOS” (changed to “Scan” in the scanner version) offer basic functionality, and the tablet’s design allows for easy operation in different scenarios.

Accessories & Applications

• Included:
  Comes with a packaging box and a 5V 3A DC charger, providing the essential items for immediate use.
• Ideal For:
  Ideal for industries such as logistics, field service, and inventory management where cost – effectiveness, durability, and basic functionality are key requirements. Its Android – based system, rugged design, and connectivity options make it a reliable choice for these applications.
