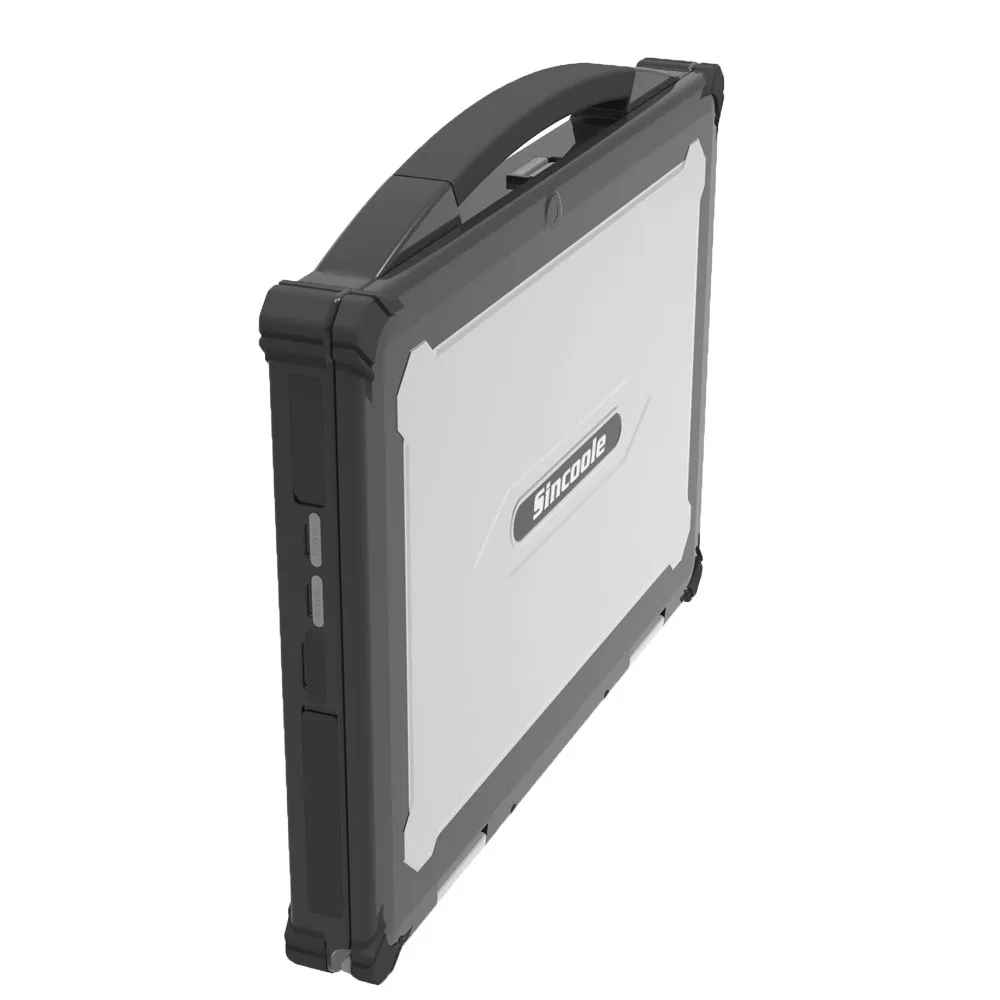

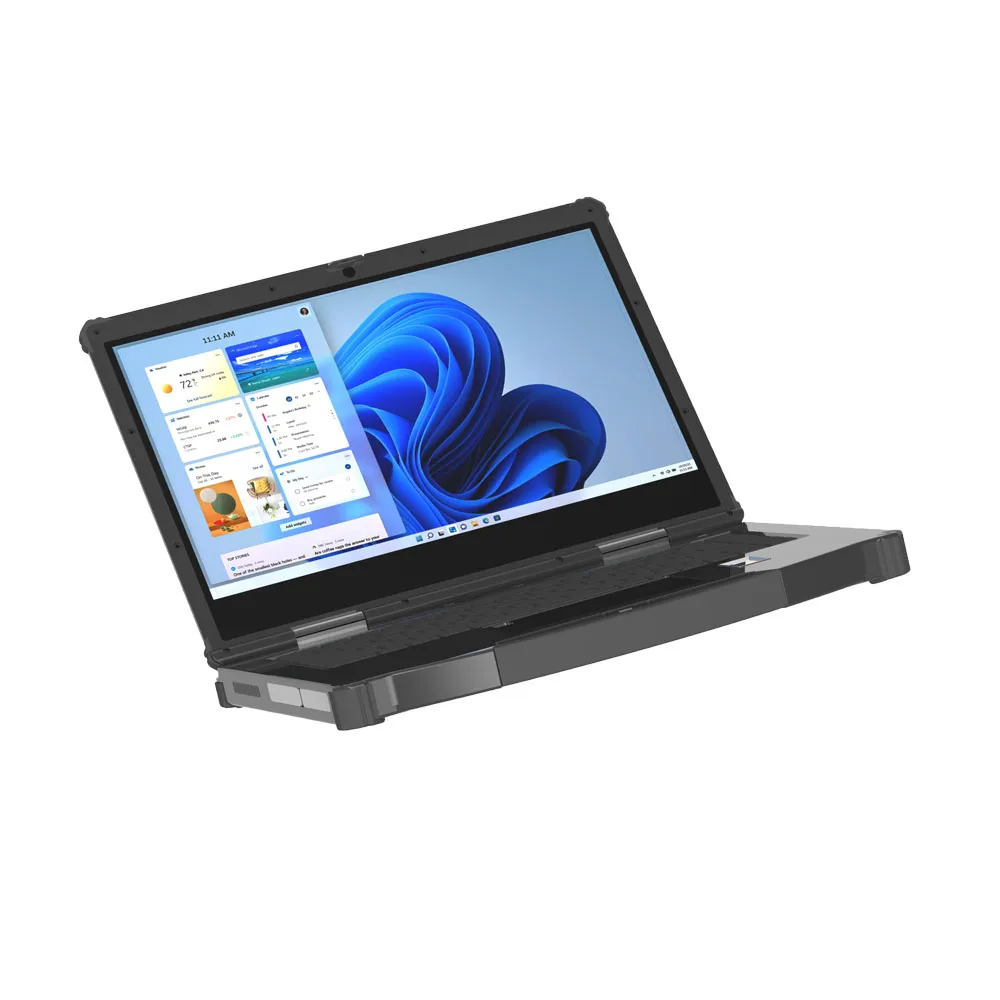

N40-U (Pre-sale Version)
The N40-U is a 14-inch rugged laptop featuring Intel 12th Gen processors (I3-1215U/I5-1235U/I7-1255U optional, standard I5-1235U) with Windows 10/11 Home/Pro/IoT support. It offers flexible memory/storage options (8GB/16GB/32GB RAM; 256GB/512GB/1TB ROM with removable secure SSD). The 14-inch 19201080 display with 800nits sunshine readability supports 10-point touch, stylus, and thin glove operation. Equipped with dual batteries (6000mAh 7.6V + 3000mAh 15.2V) for 8-hour video playback, it featur
Technical Support
E-mail: marketing-01@sincoole.com
Hotline: +86 0755-2302 3855
Product Overview
The N40-U is a 14-inch rugged laptop featuring Intel 12th Gen processors (I3-1215U/I5-1235U/I7-1255U optional, standard I5-1235U) with Windows 10/11 Home/Pro/IoT support. It offers flexible memory/storage options (8GB/16GB/32GB RAM; 256GB/512GB/1TB ROM with removable secure SSD). The 14-inch 1920×1080 display with 800nits sunshine readability supports 10-point touch, stylus, and thin glove operation. Equipped with dual batteries (6000mAh 7.6V + 3000mAh 15.2V) for 8-hour video playback, it features 4G LTE, WiFi 6, Bluetooth 5.0, and multiple I/O interfaces. With IP65 waterproof/dustproof rating, 1.2m drop resistance, and optional high-precision GPS/fingerprint, it's ideal for industrial environments and mobile workstations.
Key Features
- 12th Gen Intel Core processors (I3/I5/I7 optional), standard with I5-1235U for powerful performance
- 14-inch 1920×1080 display with 800nits brightness, 10-point touch, stylus and thin glove support
- Flexible memory/storage: 8GB/16GB/32GB RAM and 256GB/512GB/1TB removable secure SSD options
- Dual battery system (6000mAh + 3000mAh) for 8-hour video playback, 4.5-hour charging time
- Comprehensive connectivity: 4G LTE, WiFi 6, Bluetooth 5.0, GPS/BDS/GLONASS (high-precision optional)
- Rich interfaces: 4×USB 3.0, Type-C, RJ45 (1-2 ports), HDMI, RS232, and multiple expansion slots
- IP65 waterproof/dustproof, 1.2m drop resistance, rugged casing (ABS/PC/TPU/aluminum)
- Optional features: fingerprint sensor, front NFC (3-5cm range), high-precision GPS (0.25-1m accuracy)
Technical Specifications (N40-U)
| OS | Windows 10/11 Home / Pro / IoT |
| CPU | Intel I3-1215U / I5-1235U / I7-1255U optional Standard: I5-1235U |
| RAM | 8GB / 16GB / 32GB optional |
| ROM | 256GB / 512GB / 1TB optional Removable secure SSD (256GB/512GB/1TB optional) |
| LCD | 14 inch; 1920×1080 Max 800 nits sunshine readable |
| Touch Screen | 10 point touch Support stylus Support thin glove touch |
| Camera | 5M / 13M (MIPI CONNECTOR) |
| Power and Battery | 6000mAh, 7.6V lithium battery + 3000mAh, 15.2V lithium battery Charging time: 4.5H Usage time: 8H (playing video) DC 5.5×2.5mm, 19V 3A DC input |
| WWAN | 4G LTE, 3G WCDMA, GSM (Quectel EC25AUGC) 4G Freq: FDD (B1,B2,B3,B4,B5,B7,B8,B28), TDD (B40,B34) WCDMA: B1,B2,B4,B5,B8 GSM: B2,B3,B5,B8 |
| GPS | Baidu, GPS, GLONASS High precision GPS module optional |
| WIFI | 802.11a/b/c/g/n wireless internet; Wireless AP (Mobile AP); 2.4G, 5G SUPPORT WIFI 6 |
| BLUETOOTH | 5.0 Version |
| NFC | 13.56 MHz, distance 5cm or above Front NFC: under the screen (3-5cm distance), Mifare optional (optional feature) |
| SPEAKER | 1.5 watt |
| Sensor | 1. Light sensor 2. Acceleration/gravity sensor |
| Size | 335×265×32mm |
| Weight | 1.85kg |
| Multi-Media (Hardware Decoding) | Photo Viewer: BMP, JPG, GIF, PNG Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P) Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) |
| Language | Multi language |
| Interface In/Out Port | 1. USB 3.0 *4, TYPE-C *1 2. RJ45 *1, or RJ45 *2 optional 3. DC *1 (5.5×2.5mm) 4. Microphone + Earphone 5. HDMI *1 6. RS232 *1 7. SSD TF card slot 8. SIM card slot *1 9. Secure SSD slot *1 |
| Casing Material | ABS / PC / rubber TPU / aluminum |
| Button | V+ -, Power, P, F, H |
| Fingerprint | Support (optional) |
| High Precision GPS | 0.25-1 meter high precision GPS, support GPS, Beidou, GLONASS (optional) |
| Accessories | 1. USB cable 2. Charger 3. Hand bag 4. White box, no logo |
| Proof Rate | 1. Water proof IP65 2. Dropping proof 1.2 meter |
| Certification | 1. 810G 2. CE, FCC |
| Temperature | 1. Storage temperature: -25 to 80°C 2. Operation temperature: -20 to 60°C |
Application Scenarios
Industrial Automation
Field Service & Logistics
Mobile Workstations
Outdoor Data Collection
