SP152
Cutting-edge multi-system waterproof industrial PC: Versatile CPUs (incl. domestic), 15.6-inch HD screen, stable WiFi/Bluetooth. IP65 waterproof + wide temp resilience (handles logistics/industrial scenes). Large storage + optional speakers — robust for cross-industry efficiency.
Technical Support
E-mail: marketing-01@sincoole.com
Hotline: +86 0755-2302 3855
Product Overview
The SP152 is a 15.6-inch rugged industrial tablet running Windows 11 Pro/IoT/Home (Windows 10 optional), powered by Intel® Celeron® J6412 quad-core processor (2.00GHz, turbo up to 2.60GHz, 10W TDP) with Intel UHD Graphics 16 EUs. It features scalable memory/storage (16GB/256GB, 8GB/128GB/512GB optional), 15.6-inch 1080×1920 TFT-LCD display (200-250nits), 10-point touch, WiFi 4 connectivity, and aviation plug interface design with dual RS232. With IP65 dust/waterproof, wide temperature operation (-20°C to 55°C), and robust design (384×229×40mm/3000g), it's optimized for industrial workstation applications requiring reliable legacy device integration.
Key Features
- Multi-Windows system support (11 Pro/IoT/Home, 10 optional), Intel Celeron J6412 (2.00GHz/2.60GHz turbo) with optional Core 6th/7th/8th gen or Phydium D2000
- Intel UHD Graphics 16 EUs, scalable memory (8GB/16GB) and storage (128GB/256GB/512GB) for flexible industrial application deployment
- 15.6-inch 1080×1920 TFT-LCD display (200-250nits), 10-point touch for precise industrial operation control
- WiFi 4 (2.4G) connectivity, dual RS232 interfaces for seamless legacy industrial equipment integration
- Aviation plug interface design, rich I/O: HDMI, USB3.0×2, USB2.0×1, LAN, DC-IN power for industrial environments
- IP65 dust/waterproof, wide temperature operation (-20°C to 55°C) for harsh working conditions
- Robust design (384×229×40mm) with 3000±100g net weight (3600±100g with accessories)
- Complete accessory kit including aviation plug cables with optional VESA bracket for flexible mounting
Technical Specifications (SP152)
| OS | Windows 11 Pro / IoT / Home Windows 10 optional |
| CPU | Intel® Celeron® J6412 (Quad Core, Quad Threads; 2.00GHz, turbo 2.60GHz; TDP 10W) Core 6th/7th/8th generation processors optional, Phydium D2000 optional |
| GPU | Intel UHD Graphics 16 EUs |
| RAM/ROM | 16GB/256GB RAM: 8GB optional; ROM: 128GB/512GB optional |
| LCD | 15.6 inch; 1080×1920; TFT-LCD 200nits (TYP), 250nits (MAX) |
| Touch Screen | 10 Point Touch |
| WIFI | 802.11a/b/g/n Wireless Internet; Wireless AP (Mobile AP); 2.4G WiFi4 |
| SPEAKER | optional |
| Size | 384×229×40mm |
| Weight | 3000±100g (machine net weight) 3600±100g (Machine+Accessories) |
| Language | Multi language |

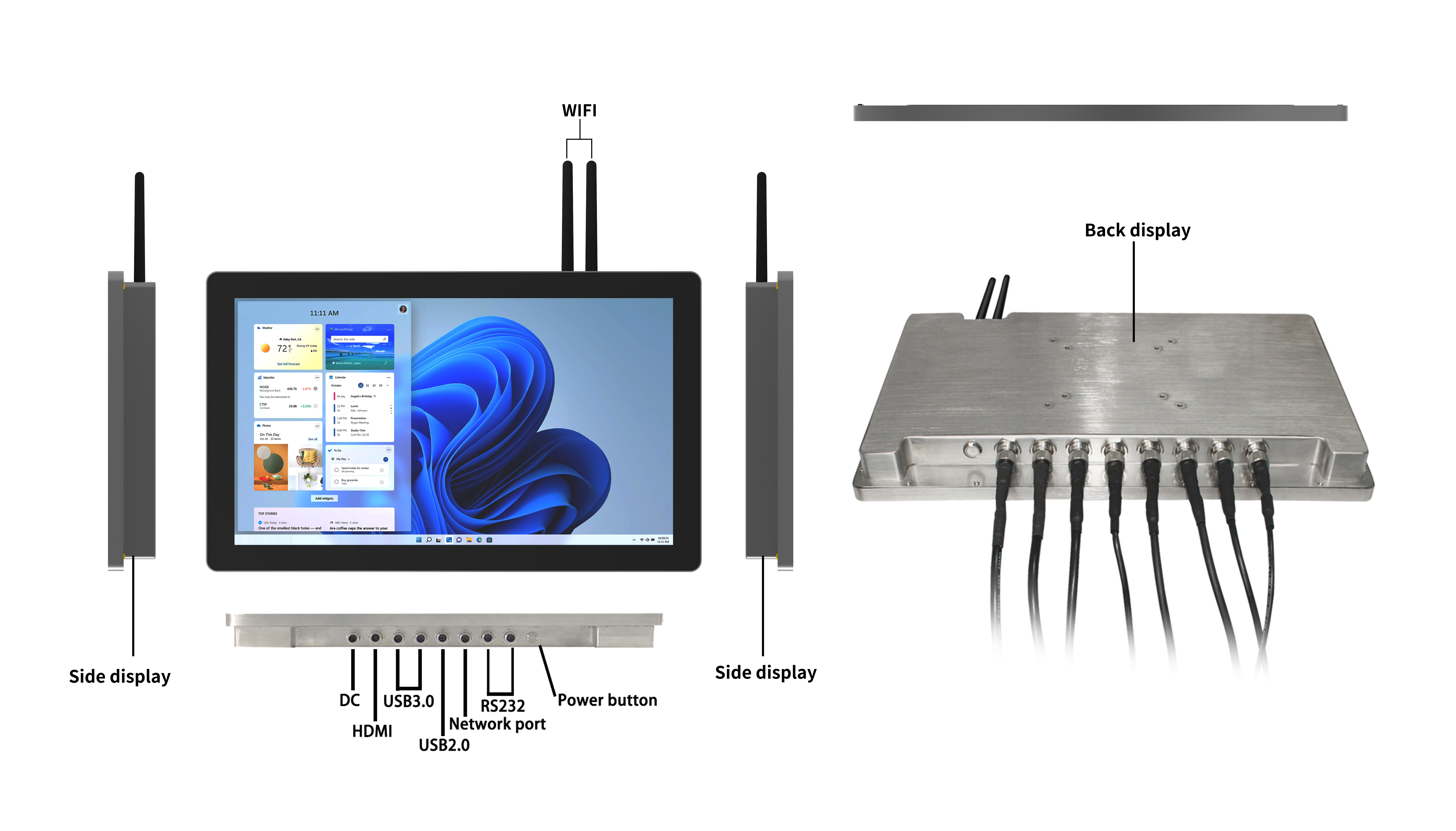

| Interface In/Out Port | DC-IN power interface ×1; HDMI ×1; USB3.0 ×2; USB2.0 ×1; LAN ×1; RS232 interface ×2 (standard DB9) Aviation plug interface form |
| Button | Power |
| Accessories | Packaging box; DC Charger (12V 4A); WiFi antenna ×2; Screws; Aviation Plug Cable ×8 Optional: VESA Bracket |
| Multi-Media (Hardware Decoding) | Photo Viewer: BMP, JPG, GIF, PNG Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P) Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) |
| Proof Degree | IP65 |
| Temperature | Storage Temperature: -30°C to 60°C; Operation Temperature: -20°C to 55°C |
Application Scenarios
Industrial Automation Control
Legacy Equipment HMI
Factory Floor Monitoring
Industrial Data Station
