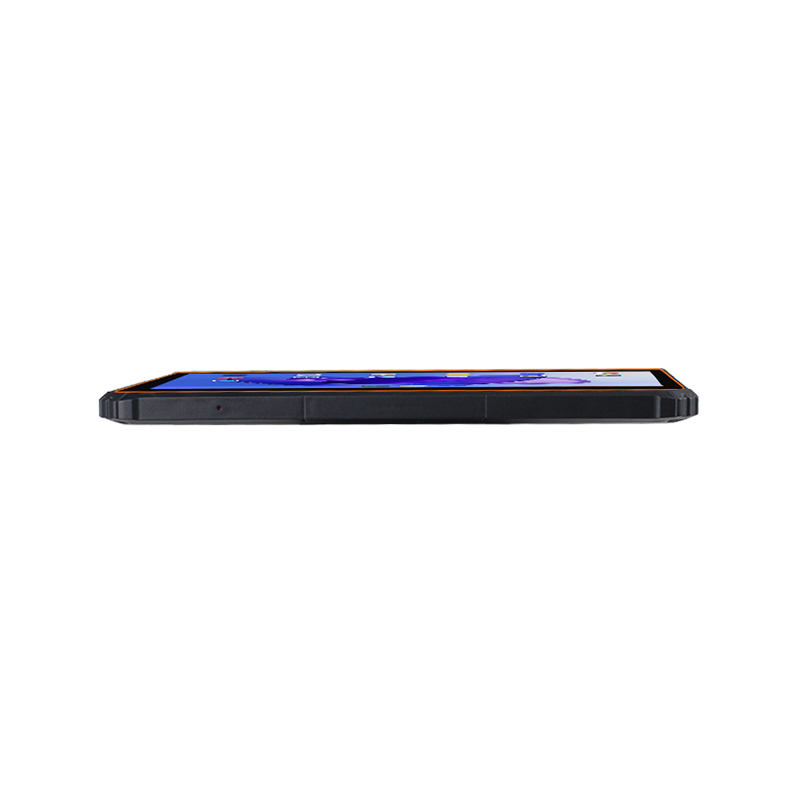

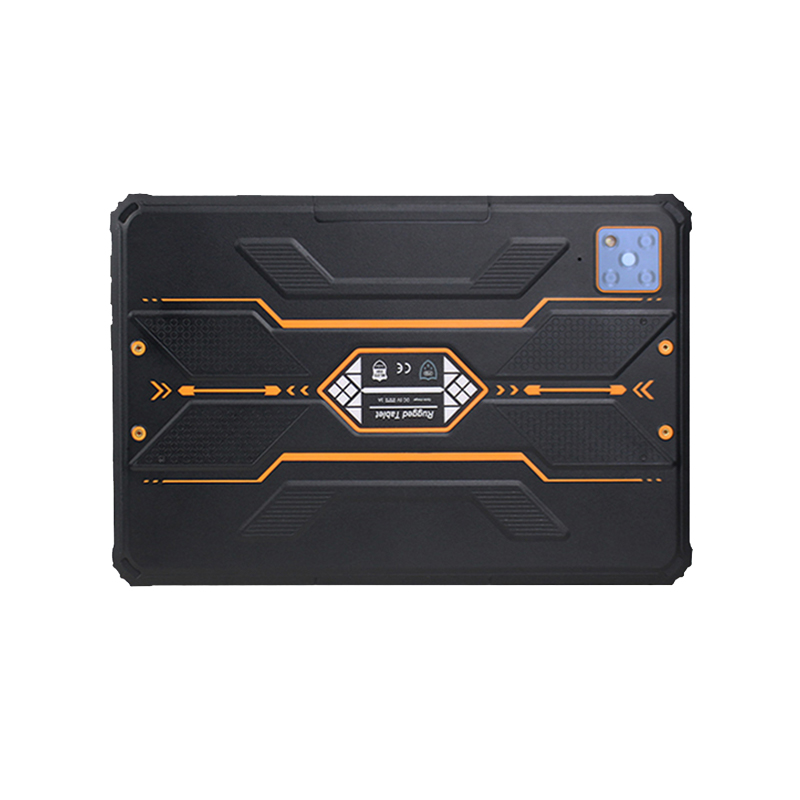

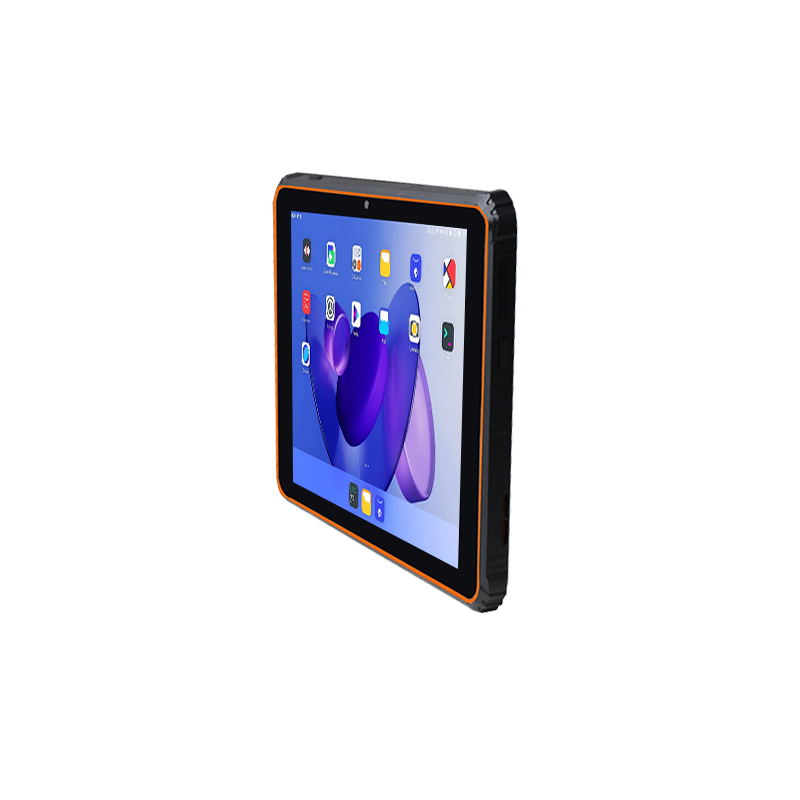

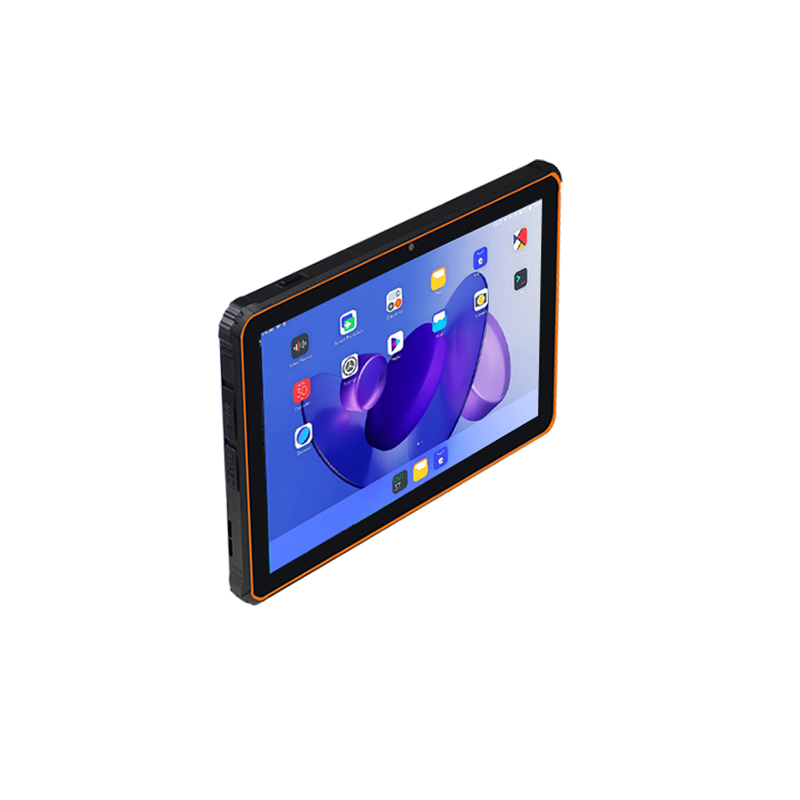

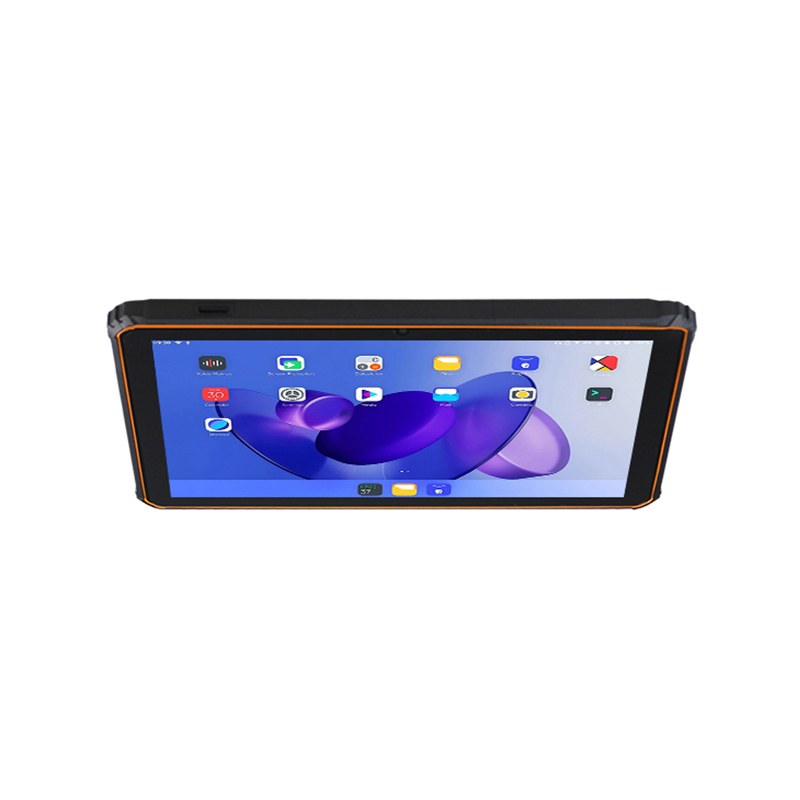

ST10-A
A rugged tablet suitable for multiple industries, running on the Android system, with a large clear screen and smooth communication for efficient work experience; powerful battery life, IP68 protection, wide temperature adaptability to withstand harsh environments, and expandable functions make it a durable smart assistant for various industries.
Technical Support
E-mail: marketing-01@sincoole.com
Hotline: +86 0755-2302 3855
Product Overview
The ST10-A is a 10.1-inch rugged tablet powered by MTK MT6765 octa-core processor (4×Cortex-A53@1.8GHz + 4×Cortex-A53@2.3GHz), running Android 11 system. It features 4GB/64GB storage (6GB/128GB optional), 10.1-inch 1200×1920 TFT display (350nits TYP/400nits MAX), 5MP front/13MP rear cameras, 10000mAh large-capacity battery, multi-band connectivity, WiFi 802.11a/b/g/n/ac and Bluetooth 5.0. With IP68 dust/waterproof, 1.2m drop resistance and dual SIM slots, it's designed for reliable performance in various industrial and outdoor applications.
Key Features
- Android 11 with MTK MT6765 octa-core processor (4×A53@1.8GHz + 4×A53@2.3GHz)
- IMG PowerVR GE8320 GPU, 10.1-inch 1200×1920 TFT display (350nits TYP, 400nits MAX)
- 4GB/64GB storage (6GB/128GB optional), 10000mAh 38Wh battery (19H usage time)
- 5MP front + 13MP rear cameras, 10-point touch screen with stylus support
- Multi-band WWAN (GSM/WCDMA/LTE) + WiFi 802.11a/b/g/n/ac (2.4G/5G) and Bluetooth 5.0
- IP68 dust/waterproof, 1.2m drop resistance, multi-system GPS (BDS/GPS/GLONASS)
- Dual SIM slots (or SIM+TF), Type-C interface with SOS/scan function button
- Optional 1D/2D barcode (NLS-N1), rich sensors including gyroscope and magnetic sensor
Technical Specifications (ST10-A)
| OS | Android 11 |
| CPU | MTK MT6765 Octa Core; 4x Cortex-A53 @1.8GHz, 4x Cortex-A53 @2.3GHz |
| GPU | IMG PowerVR GE8320 GPU |
| RAM/ROM | 4GB/64GB (6GB/128GB optional) |
| LCD | 10.1 inch TFT, 1200×1920; 350nits (TYP), 400nits (MAX) |
| Touch Screen | 10 Point Touch, Support stylus |
| Camera | Front: 5M; Rear: 13M |
| Power and Battery | 10000mAh / 3.8Vdc (38.0Wh) Charging time: about 5H Usage time: about 19H (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | GSM：850/900/1800/1900 (B5/B8/B3/B2) WCDMA: 850/900/1900/2100 (B5/B8/B2/B1) FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20 TDD-LTE: B38/B39/B40/B41 |
| GPS | BDS, GPS, GLONASS |
| WIFI | 802.11a/b/g/n/ac Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G |
| BLUETOOTH | 5.0 Version |
| NFC | 13.56 MHz, Distance: 1-3cm; ISO/IEC 14443 A/B，ISO/IEC 15693 |
| MIC | -42db, 2.2kΩ |
| SPEAKER | 40x22.59x3.1mm, 8Ω 1W |
| Sensor | Magnetic sensor, G-sensor, O-sensor, Acceleration sensor, Gyroscope, Motor |
| Size | 250×166×14.2mm |
| Weight | 800±50g |
| Language | Multi language |
| Interface In/Out Port | Type-C *1; SIM Card Slot*2 or SIM+TF Card Slot |
| Button | V+ -, Power, "SOS"; Scanner version: "SOS" changed to "Scan" |
| 1D/2D Barcode | Optional: NLS-N1 optional |
| Accessories | Packaging box, Wrist strap, Adapter & Charging Cable, User Manual, Screws & Screwdriver |
| Multi-Media (Hardware Decoding) | Photo Viewer: BMP, JPG, GIF, PNG Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P) Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) |
| Proof Degree | IP68 Anti-dust & Waterproof, 1.2m Dropping Resistance |
| Temperature | Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C |
Application Scenarios
Industrial Field Operations
Mobile Data Collection
Outdoor Work Environments
Barcode Scanning Applications
