Product Overview
Key Features
- Android 13.0 with Unisoc T616 (Octa Core; 2.0GHz) - Unisoc T606 Optional
- Mali-G57 MP1@850MHz GPU, 10.1-inch 1200×1920 TFT display (350nits TYP, 400nits MAX)
- Flexible storage: 4GB/64GB or 8GB/128GB, 10000mAh 38Wh large-capacity battery
- 5MP front + 13MP rear cameras, stylus support for 10-point touch screen
- 4G LTE multi-band connectivity (FDD/TDD), WiFi 5 (802.11a/b/g/n/ac) and Bluetooth 5.0
- IP68 dust/waterproof, 1.2m drop resistance for harsh environment use

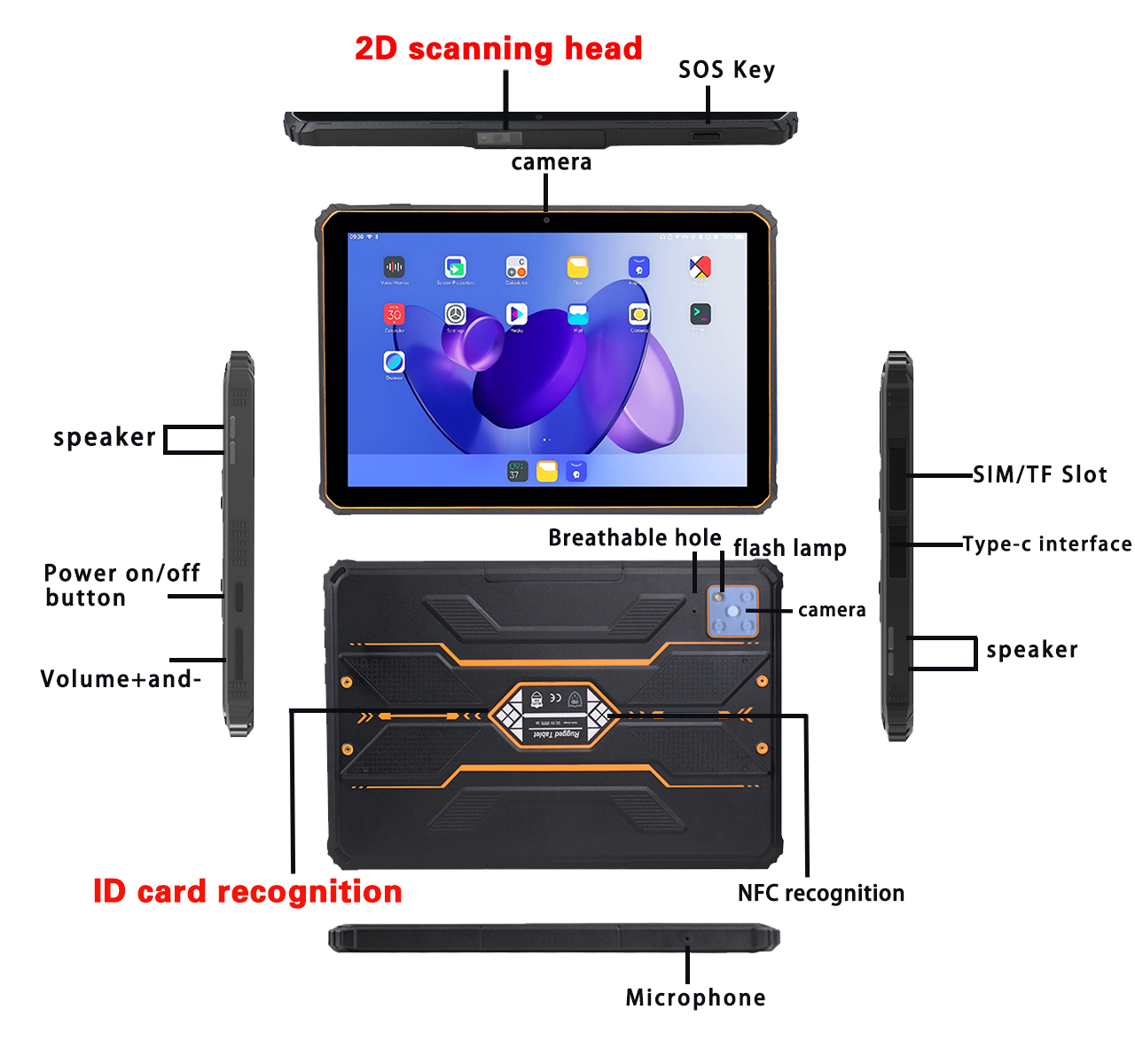

- Dual SIM slots (or SIM+TF), Type-C interface with SOS/scan function button
- Optional 1D/2D barcode (NLS-N1) with multi-system GPS (BDS/GPS/GLONASS)
Technical Specifications (ST10-T)
| OS | Android 13.0 |
| CPU | Unisoc T616 (Octa Core; 2.0GHz) - Unisoc T606 Optional |
| GPU | Mali-G57 MP1@850MHz |
| RAM/ROM | 4GB/64GB / 8GB/128GB |
| LCD | 10.1 inch TFT, 1200×1920; 350nits (TYP), 400nits (MAX) |
| Touch Screen | 10 Point Touch, Support stylus |
| Camera | Front: 5M; Rear: 13M |
| Power and Battery | 10000mAh / 3.8Vdc (38.0Wh) |
| WWAN | FDD_LTE: B1/B2/B3/B5/B7/B8/B20; TDD_LTE: B38/B39/B40/B41; WCDMA: B1/B2/B5/B8; GSM: B2/B3/B5/B8 |
| GPS | BDS, GPS, GLONASS |
| WIFI | 802.11a/b/g/n/ac (2.4G/5G), Wireless AP (Mobile AP) |
| BLUETOOTH | 5.0 Version |
| NFC | 13.56 MHz, Distance: 1-3cm; ISO/IEC 14443 A/B,ISO/IEC 15693 |
| MIC | -42db, 2.2kΩ |
| SPEAKER | 40x22.59x3.1mm, 8Ω 1W |
| Sensor | Magnetic sensor, G-sensor, O-sensor, Acceleration sensor, Gyroscope, Motor |
| Size | 250×166×14.2mm |
| Weight | 800±50g |
| Interface In/Out Port | Type-C *1; SIM Card Slot*2 or SIM+TF Card Slot |
| Button | V+ -, Power, "SOS"; Scanner version: "SOS" changed to "Scan" |
| 1D/2D Barcode | Optional: NLS-N1 optional |
| Proof Degree | IP68 Anti-dust & Waterproof, 1.2m Dropping Resistance |
| Temperature | Storage: -40°C to 60°C; Operation: -20°C to 55°C |
