ST11-T
Industry-ready Android rugged tablet: Android 10 + octa-core, 8GB+256GB (runs pro apps smoothly). 10.1-inch HD 450nits screen, 12000mAh all-day battery. 5G/WiFi + multi-mode positioning, IP65 protection + 1.2m drop resistance (fits tough industrial spaces). Customizable (large internal space) — reliable for logistics, industrial use.
Technical Support
E-mail: marketing-01@sincoole.com
Hotline: +86 0755-2302 3855
Product Overview
The ST11-T is a 10.1-inch rugged tablet powered by Unisoc T7510 octa-core processor (4×Arm Cortex-A75@2.0GHz + 4×Arm Cortex-A55@1.8GHz), running Android 10.0 system. It features 8GB/256GB storage, 10.1-inch 1200×1920 IPS display (450nits), 5MP front/13MP rear cameras with flash light, 12000mAh 3.8V battery, 5G connectivity (N41/N78/N79), WiFi 802.11a/b/g/n/ac, Bluetooth 5.0 and NFC. With lightweight design (1090±50g), IP65 dust/waterproof, 1.2m drop resistance and optional UHF RFID, it's optimized for 5G industrial applications requiring reliable performance and connectivity.
Key Features
- Android 10.0 system, Unisoc T7510 octa-core processor (4×Cortex-A75@2.0GHz + 4×Cortex-A55@1.8GHz)
- PowerVR GM9446 GPU, 10.1-inch 1200×1920 IPS display (450nits), 10-point touch with stylus & wet hand support
- 8GB/256GB storage, 12000mAh 3.8Vdc battery for extended operation time
- 5MP front + 13MP rear cameras with flash light, comprehensive sensor suite including barometric sensor and gyroscope
- 5G connectivity (N41/N78/N79), 4G LTE, 3G WCDMA, WiFi 802.11a/b/g/n/ac and Bluetooth 5.0
- Rich interfaces: Type-C (OTG), USB 2.0, RJ45, RS232, dual pogopin connectors for versatile connectivity
- IP65 dust/waterproof, 1.2m drop resistance, MIL-STD-810G certification, optional UHF RFID and barcode scanner
- Lightweight design (1090±50g) with compact form factor (268.9×176.8×18mm) for easy field deployment
Technical Specifications (ST11-T)
| OS | Android 10.0 |
| CPU | Unisoc T7510 (Octa Core, Octa Threads; 2.0GHz) Arm Cortex-A75×4 @2.0GHz, Arm Cortex-A55×4 @1.8GHz |
| GPU | PowerVR GM9446 |
| RAM/ROM | 8GB/256GB |
| LCD | 10.1 inch; 1200×1920; 450nits; IPS Screen |
| Touch Screen | 10 Point Touch Stylus Support; Wet Hand Touch Support |
| Camera | Front: 5MP; Rear: 13MP (Flash light) |
| Battery | 12000mAh / 3.8Vdc (45.6Wh) |
| WWAN | 5G LTE, 3G WCDMA, GSM 2G GSM:850/900/1800/1900 3G WCDMA:B1/2/5/8 4G LTE:B1/2/3/5/7/8/34/38/39/40/41 5G:N41/N78/N79 |
| GPS | BDS, GPS, GLONASS |
| WIFI | 802.11a/b/g/n/ac Wireless Internet; Wireless AP (Mobile AP); 2.4G, 5G |
| BLUETOOTH | 5.0 Version |
| NFC | 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A |
| MIC | Sensitivity: -32±2d; Output Impedance: 2.2kΩx1 |
| SPEAKER | 8Ω 1.5 Watt |
| Sensor | Light Sensor, Distance sensor, Barometric Sensor, G-Sensor, Acceleration Sensor, Gyroscope, Motor |
| Size | 268.9×176.8×18mm |
| Weight | 1090±50g |
| Language | Multi language |

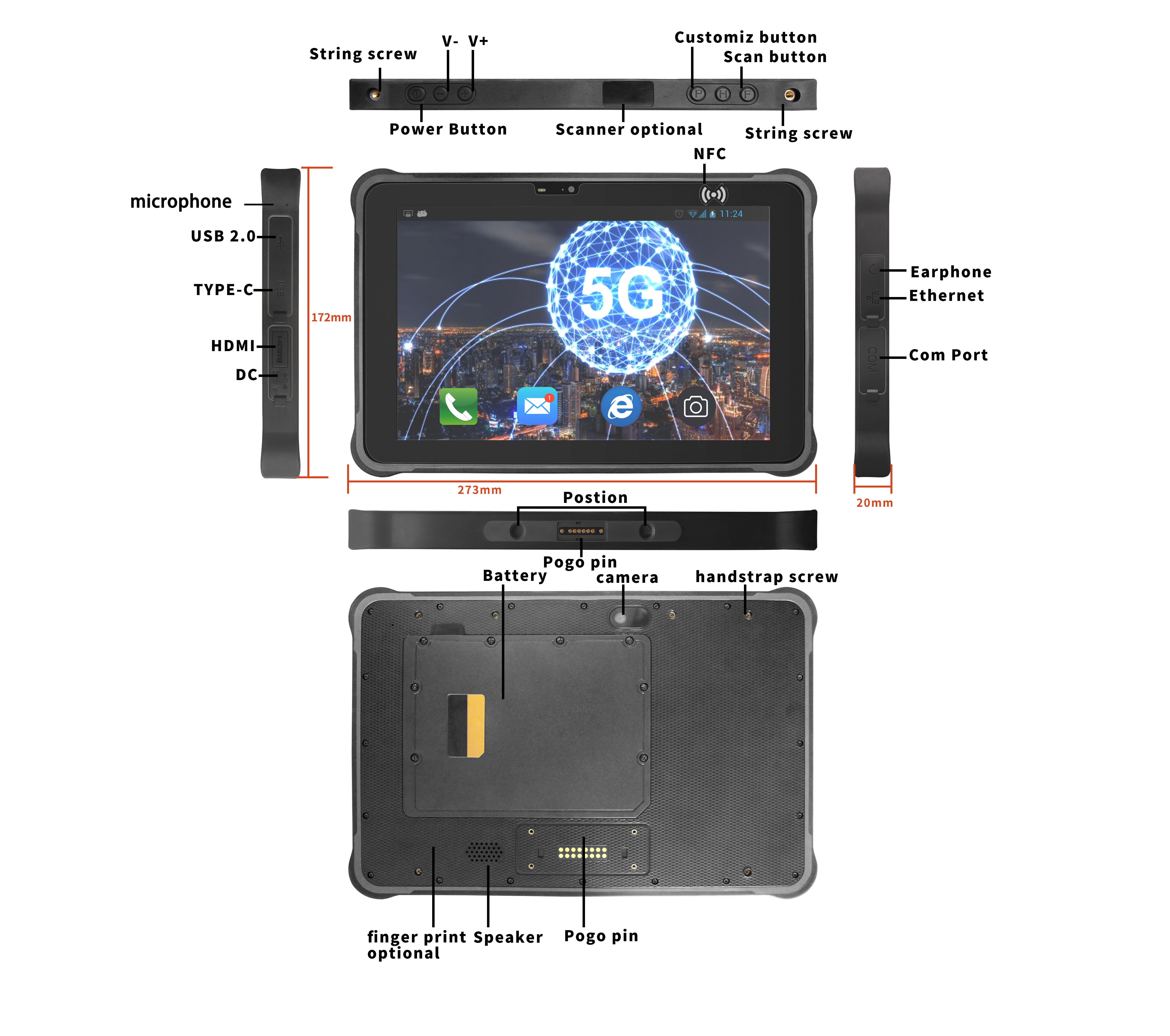

| Interface In/Out Port | Type-C *1 (OTG); SIM Card Slot*1; TF Card Slot*1; Earphone*1; DC*1 (3.5×12mm); USB 2.0 *1; RJ45*1; RS232*1 Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| Button | V+ -, Power, "F" for Barcode Scan Customized Button: P,H (Default No Functionality) |
| 1D/2D Barcode | Optional: Honeywell N4680 Optional |
| UHF RFID | M-500 Optional American standard M-500 (902Mhz – 928Mhz): Built in (1-2M), External (3-5M) European standard M-500 (865MHz – 868MHz): Built in (1-2M), External (3-5M) M-301 Optional American standard M-301 (902Mhz – 928Mhz): External (5-8M) European standard M-301 (865MHz – 868MHz): External (5-8M) |
| Accessories | Blue Box; DC Charger (5V 3A); Carry strap; Screw; Wrist strap; Screwdriver Optional: Docking Station; Car Holder STA15; Car Holder STA03; Magnetic Keyboard |
| Multi-Media (Hardware Decoding) | Photo Viewer: BMP, JPG, GIF, PNG Video Format: MEPG 1/2/4, H.263/H.264, RMVB, WMV/VC-1, MVC, AVS, MJPEG (UP TO 1080P) Audio Format: MP3, WMA, WAV, OGG, FLAC, ALAC, APE, AAC, AC-3, DTS (need license) |
| Proof Degree | IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance |
| Certification | MIL-STD-810G; CE, FCC, 3C |
| Temperature | Storage Temperature: -40°C to 60°C; Operation Temperature: -20°C to 55°C |
Application Scenarios
5G Industrial Connectivity
Barometric Sensing Applications
RFID Asset Management
Industrial Field Operations
