Home > Product > Rugged Tablet > ST8 Ser.

Product

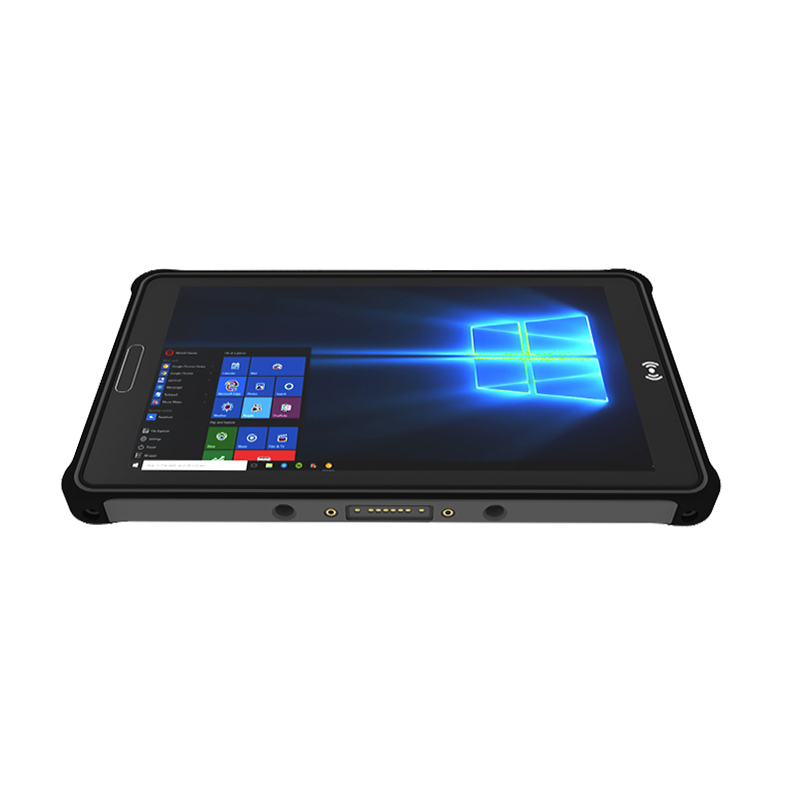

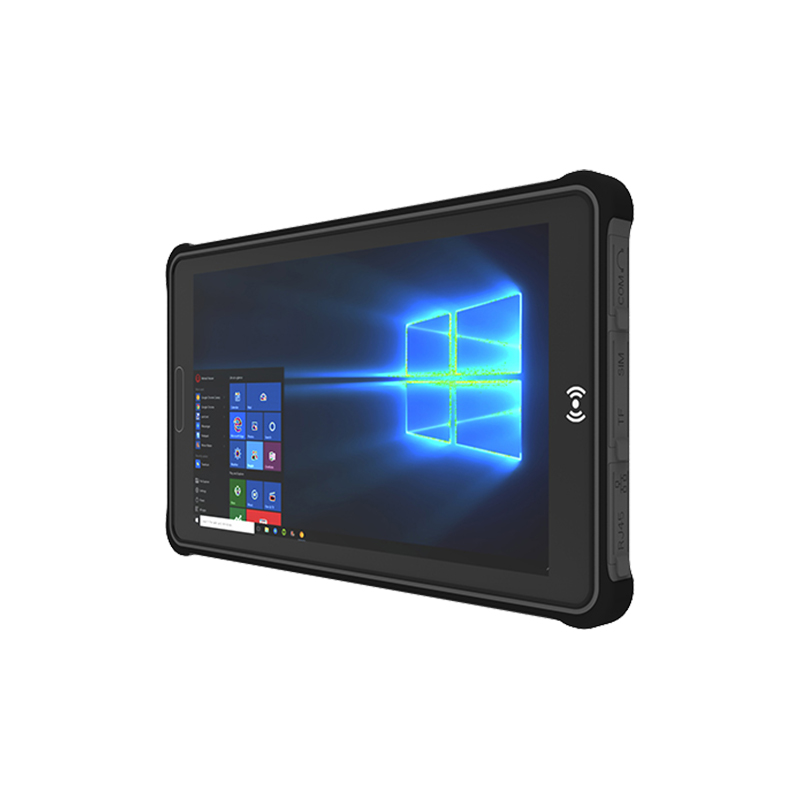

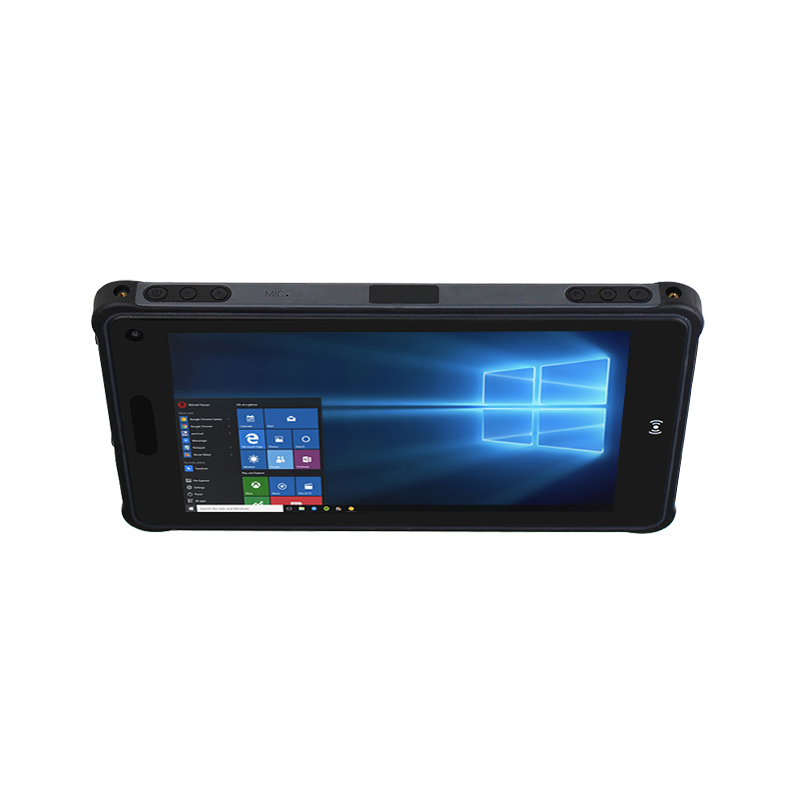

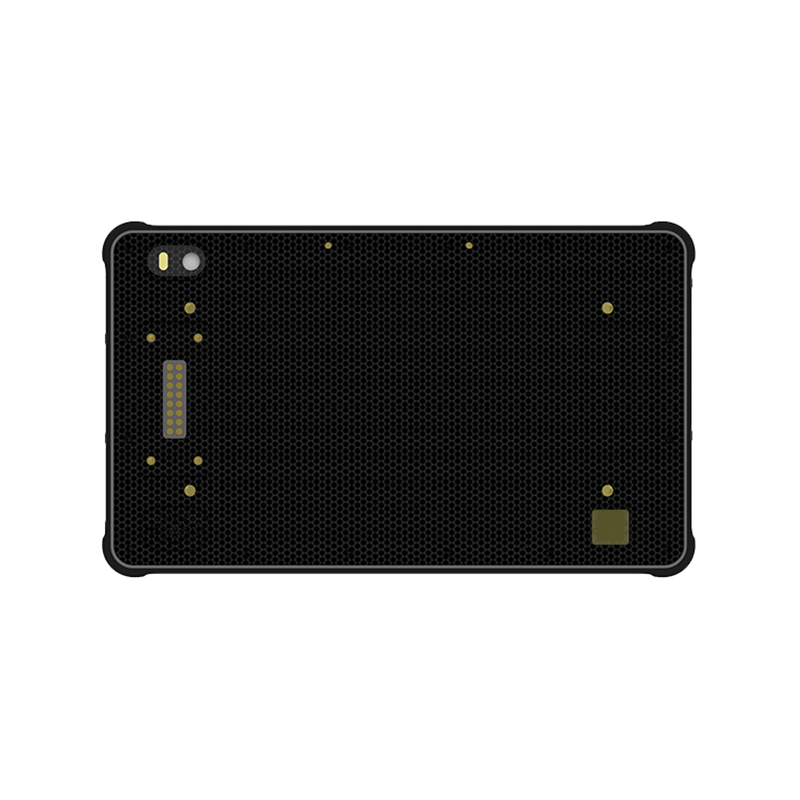

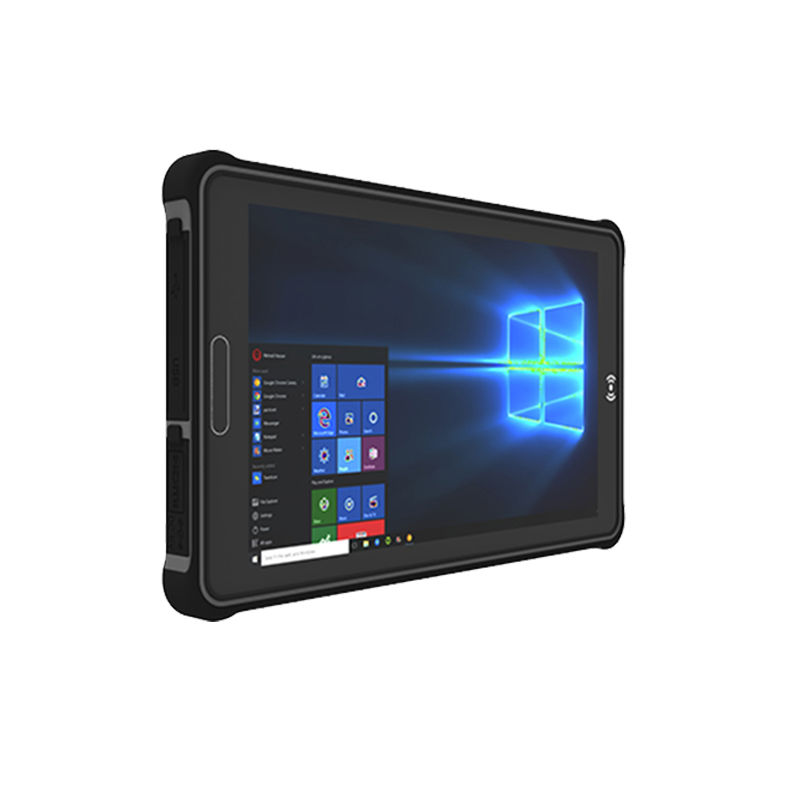

ST8-W

The ST8-W is a rugged industrial tablet running Windows 10. It features an 8-inch HD screen, IP65 protection, and 1.2-meter drop resistance, making it suitable for logistics, industrial, and other scenarios. It supports 4G/WiFi communication, optional 2D barcode scanning, and operates stably from -20℃ to 55℃, making it a reliable portable terminal for industry applications.

Technical Support

E-mail: marketing-01@sincoole.com

Hotline: +86 0755-2302 3855

Get a quote

Add to Quotes

Product Overview

The ST8-W is an 8-inch rugged tablet powered by Intel Cherry Trail Z8350 quad-core processor, running Windows 10 (Home/Pro/IoT optional). It features an 8-inch 1200×1920 IPS display, 4GB/64GB storage, IP65 dust/water resistance, 1.2m drop protection, and supports multi-mode connectivity including 4G LTE, dual-band Wi-Fi, Bluetooth 4.2 and NFC. With optional modules like 1D/2D barcode, UHF RFID (M-500/M-301) and fingerprint recognition, it is designed for industrial applications requiring Windows ecosystem compatibility, harsh environment resilience and flexible expansion.

Key Features

Windows 10 (Home/Pro/IoT optional) with Intel Cherry Trail Z8350 (up to 1.92GHz Turbo)
8-inch 1200×1920 IPS display, 10-point touch with stylus/wet hand support
IP65 dust/waterproof, 1.2m drop resistance, MIL-STD-810G certified
7800mAh high-capacity battery with -20°C~55°C operating temperature range
Rich connectivity: 4G LTE (SLM770A/EC25-AUX), Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2, NFC
Optional UHF RFID (M-500/M-301) with 3-8M reading range (US/EU standards)
Multiple interfaces: HDMI, RS232, USB 3.0×2/2.0×1, pogopin expansion
Support for 1D/2D barcode (NLS-N1/M1/SE2707) and fingerprint (ZAZ-0A0/1020A) modules

Technical Specifications (ST8-W)

OS	Windows 10 (Home/Pro/IoT Optional)
CPU	Intel Cherry Trail Z8350 (Quad Core, Quad Threads; 1.44GHz, Turbo up to 1.92GHz)
GPU	Intel HD Graphics 400
RAM/ROM	4GB/64GB
LCD	8 inch IPS, 1200×1920 resolution
Touch Screen	10 Point Touch, Stylus Support, Wet Hand Touch Support
Camera	Front: 2MP; Rear: 5MP
Power and Battery	7800mAh; 3.8V
WWAN	TDD-LTE: B40; FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B28; WCDMA: B1/B2/B4/B5/B8; GSM: B2/B3/B5/B8 Module: SLM770A (EC25-AUX in North America)
GPS	BDS, GPS, GLONASS (Optional High Precision GPS: UM960)
WIFI	802.11a/b/g/n/ac (2.4G/5G), Wireless AP Module: Intel Stone Peak 3165 (WiFi/Bluetooth 2-in-1)
BLUETOOTH	4.2 Version
NFC	13.56 MHz, Distance: 1-3cm, ISO14443 TYPE A
Interface In/Out Port	HDMI1, SIM Card Slot1, RS2321(mini-USB), Earphone1, DC1(3.512mm), USB-A: USB 3.02 + USB 2.01 Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232
1D/2D Barcode	Optional: NLS-N1 / M1 / SE2707
UHF RFID	M-500 Optional: US (902-928MHz) / EU (865-868MHz), 3-5M reading range M-301 Optional: US (902-928MHz) / EU (865-868MHz), 5-8M reading range
Fingerprint	Optional: ZAZ-0A0 / 1020A
Proof Degree	IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance
Temperature	Storage: -40°C to 60°C; Operation: -20°C to 55°C

Application Scenarios

🏭

Industrial Control

📦

Logistics Management

🏗️

Field Inspection

🏬

Retail Inventory

ST8-A5
