Product Overview
Key Features
- Android 10.0 with Unisoc T7510 (4×A75@2.0GHz + 4×A55@1.8GHz) octa-core processor
- PowerVR GM9446 GPU, 8-inch 1200×1920 IPS display (370nits TYP, 390nits MAX)
- 8GB/256GB fixed storage, 7800mAh battery with 16.5H video playback
- 5MP front + 13MP rear cameras with flash, stylus/wet hand touch support
- 5G (N41/N78/N79) + 4G LTE multi-band connectivity, WiFi 5 and Bluetooth 5.0
- IP65 dust/waterproof, 1.2m drop resistance (MIL-STD-810G certified)
- Rich interfaces: Type-C (OTG), USB 2.0×2, RS232, pogopin expansion
- Optional UHF RFID (M-500/M-301), 1D/2D barcode (NLS-N1/M1/SE2707) and fingerprint
Technical Specifications (ST9-T)
| OS | Android 10.0 |
| CPU | Unisoc T7510 (Octa Core, Octa Threads; 2.0GHz) - Arm Cortex-A55×4 @1.8GHz, Arm Cortex-A75×4 @2.0GHz |
| GPU | PowerVR GM9446 |
| RAM/ROM | 8GB/256GB |
| LCD | 8 inch IPS, 1200×1920; 370nits (TYP), 390nits (MAX) |
| Touch Screen | 10 Point Touch, Stylus Support, Wet Hand Touch Support |
| Camera | Front: 5MP; Rear: 13MP (Flash light) |
| Power and Battery | 7800mAh; 3.8V; Charging time: about 6H; Usage time: 16H30min (50% volume, 60% brightness, playing local 1080P video) |
| WWAN | 2G GSM: 850/900/1800/1900; 3G WCDMA: B1/2/5/8; 4G LTE: B1/2/3/5/7/8/34/38/39/40/41; 5G: N41/N78/N79 |
| GPS | BDS, GPS, GLONASS |
| WIFI | 802.11a/b/g/n/ac (2.4G/5G), Wireless AP (Mobile AP) |
| BLUETOOTH | 5.0 Version |
| NFC | 13.56 MHz, Distance: 1-3cm; ISO14443 TYPE A |
| Sensor | Light Sensor, Distance sensor, Barometric Sensor, G-Sensor, Acceleration Sensor, Gyroscope, Motor |
| Size | 236×144×17.4mm |
| Weight | 630±20g |

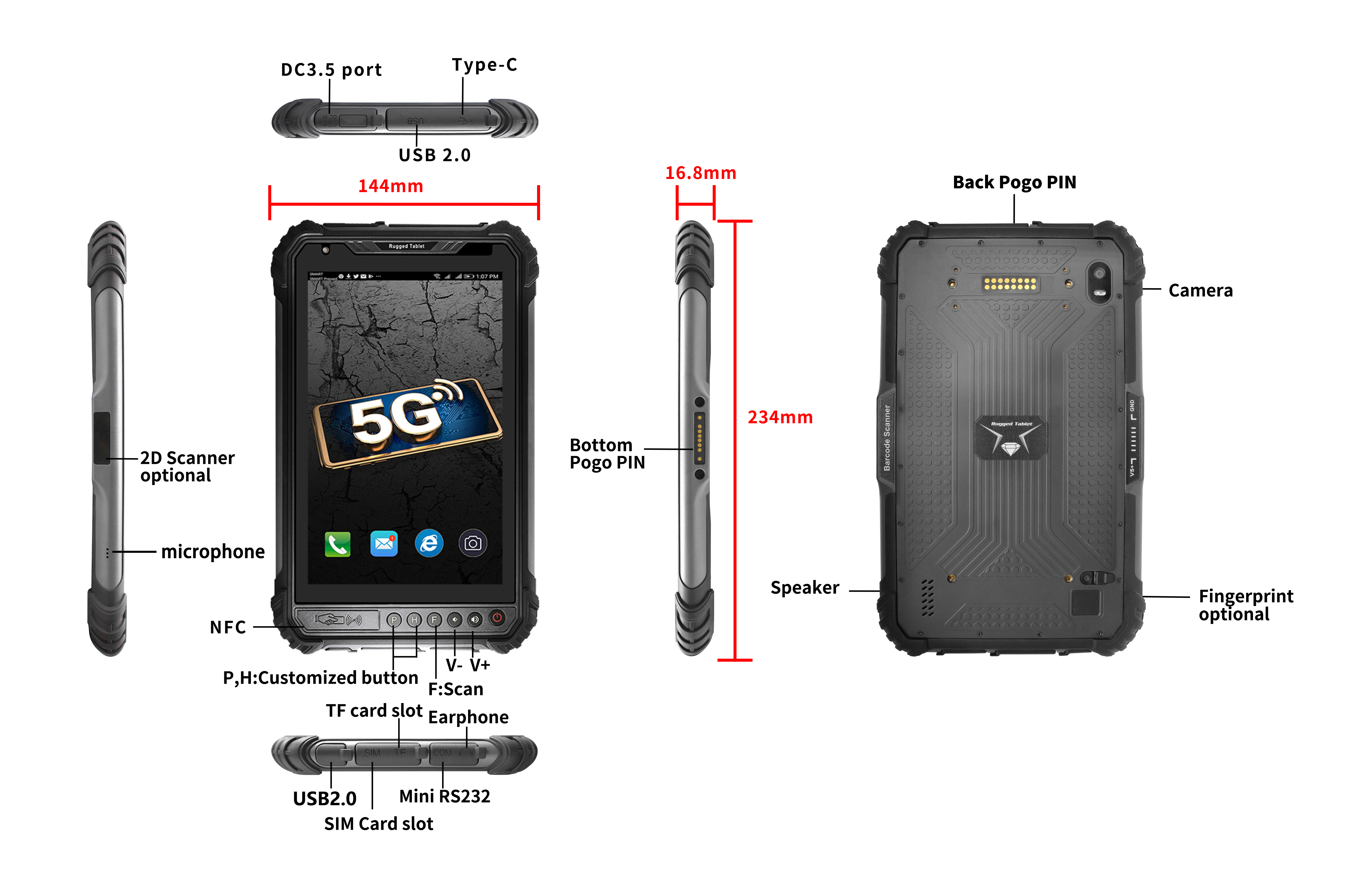

| Interface In/Out Port | Type-C *1 (OTG), SIM Card Slot*1, TF Card Slot*1, Earphone*1, DC*1 (3.5*15mm), USB 2.0 *2, RS232*1(mini-USB) Bottom pogopin: USB 2.0; Charging; RS232 Back pogopin: USB 2.0; RS232 |
| 1D/2D Barcode | Optional: NLS-N1 / M1 / SE2707 |
| UHF RFID | M-500 Optional: US (902-928MHz, 3-5M) / EU (865-868MHz, 3-5M) M-301 Optional: US (902-928MHz, 5-8M) / EU (865-868MHz, 5-8M) |
| Fingerprint | Optional: ZAZ-0A0 / 1020A |
| Proof Degree | IP65 Anti-dust & Waterproof, 1.2m Dropping Resistance |
| Certification | MIL-STD-810G, CE, FCC, 3C |
| Temperature | Storage: -40°C to 60°C; Operation: -20°C to 55°C |
